Process Engine

Process Engine Architecture

ProcessFlow’s engine is built directly into the database (PostgreSQL), using stored functions, triggers, and JSONB data to model, execute, and advance workflow instances without a separate execution service. This approach ensures that processes can run in the background without the need to have the web application open, and it allows for easy scaling and management of process instances.

---

High-Level Engine Overview

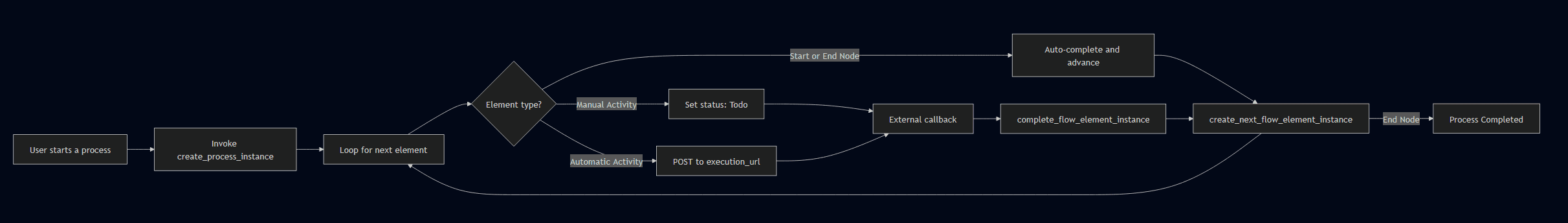

To visualize the core lifecycle without diving into low-level SQL, here’s a simplified flowchart:

This overview shows how tasks move from creation to completion and cycle until the workflow reaches an end node.

---

Core Components

• Web Application: Frontend and API Endpoint (Next.js) that start processes and displays tasks.
• Database (PostgreSQL): Stores process models, instances, flow elements, and data objects. Acts as the execution engine via PL/pgSQL.
• External Task Servers: Optional HTTP endpoints that render and collect user task input when an element is marked “Manual” or that automatically execute business logic when an element is marked “Automatic”.

---

Lifecycle of a Process Instance

1. create_process_instance (PL/pgSQL function) is invoked with a model ID. It:

   • Validates a single startNode and at least one endNode in the model.
   • Inserts a new process_instance row (status = Running).
   • Creates the first flow_element_instance for the startNode and immediately marks it Completed.

2. create_next_flow_element_instance (AFTER UPDATE trigger) fires when any flow element instance transitions to Completed. It:

   • Reads the completed element’s type (startNode, activityNode, gatewayNode, endNode, etc.).
   • Determines the next element ID via the corresponding element table (start_element, activity_element, gateway_element, …).
   • Inserts a new flow_element_instance for that next element (or, if at an endNode, marks the process_instance Completed).

3. execute_created_flow_element_instance (AFTER INSERT trigger) runs on new flow_element_instance rows with status = Created. It:

   • Skips startNode and endNode (automatically completed).
   • For gatewayNodes and endNodes, immediately marks them Completed.
   • For Manual elements, sets status = Todo so it appears in the user’s Task list.
   • For Automatic elements, sets status = In Progress and issues an HTTP POST to the element’s execution_url, passing the instance ID and any JSONB data payload.

4. complete_flow_element_instance (PL/pgSQL function) is called by the app’s API when a user or external service finishes a task. It:

   • Inserts or updates rows in data_object_instance to capture output data.
   • Sets the corresponding flow_element_instance row status = Completed, recording a timestamp.

5. Cycle Continues: Completion of any element triggers step 2 again, advancing the workflow until an endNode completes and the process instance status flips to Completed.

---

Triggers & Functions

---

Manual vs. Automatic Execution

• Manual: Elements with execution_mode = 'Manual' are created with status Todo. Users see them in their worklist, open them (via iframe HTTP calls), submit results, and the API invokes complete_flow_element_instance().
• Automatic: Elements with execution_mode = 'Automatic' go In Progress immediately. The trigger POSTS to the configured execution_url and relies on the callback endpoint (/api/instance/complete) to finalize.

---

Data Objects & Storage

• Flow Element Definitions reside in flow_element, activity_element, gateway_element, etc., including JSONB data for conditional logic or input parameters.
• Instance Data: flow_element_instance tracks each element’s runtime status, timestamps, and parent process_instance.
• Output Data: data_object_instance stores arbitrary JSONB key/value pairs per instance, allowing downstream tasks or analytics to consume results.

---

With this design, ProcessFlow achieves a serverless, scalable process engine fully driven by database logic—simplifying deployment and ensuring strong data consistency.
